Microwave Absorbing Material emc Pyramid Absorber For Anechoic Chamber rf shielding room

Certification : CE RoHS

WEIGHT : 1.6KG

COLOR : BLUE

Stopband Attenuation : 100dB

BASE SIZE : 500*500

Input Impedance : 50ohm

Insertion Loss : 100dB

Type : PYRAMID ABSORBER

NUMBER OF PYRAMID : 4-20

APPLICATION : EMC ANECHOIC CHAMBER

Model Number : SA

Place of Origin : Jiangsu, China

Brand Name : neutral

Supply Ability : 100 Piece/Pieces per Week

Packaging Details : 100 pcs in one carton the gross weight is about 20Kg

MOQ : 1 - 9 Pieces

Price : $300

HEIGHT : 100-1000MM

Contact Now

  • Used for EMC chamber

Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.

Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).

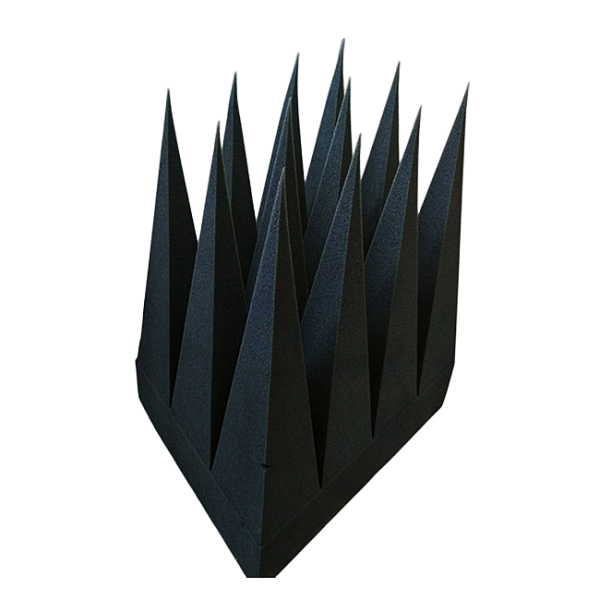

Microwave Absorbing Material emc Pyramid Absorber For Anechoic Chamber rf shielding room

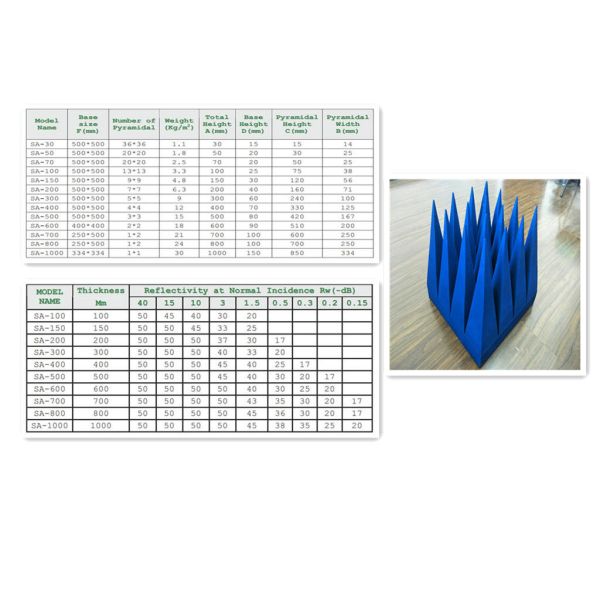

Microwave Absorbing Material emc Pyramid Absorber For Anechoic Chamber rf shielding room

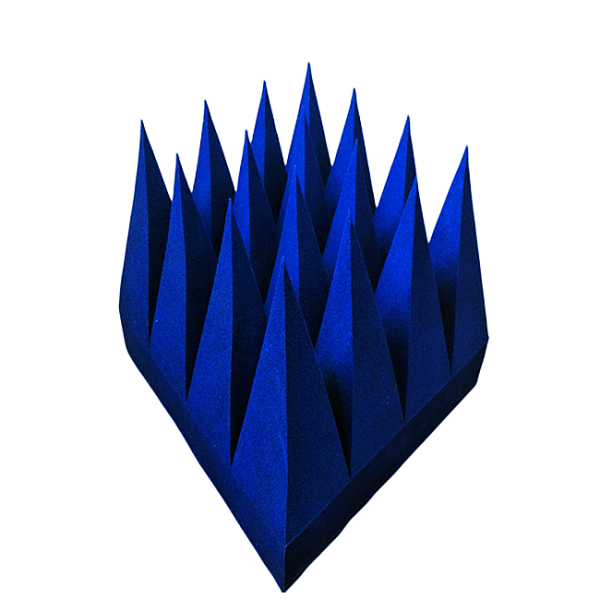

Microwave Absorbing Material emc Pyramid Absorber For Anechoic Chamber rf shielding room

Application for RF shielding door for EMC chamber

- Nuclear magnetic resonance(NMR)

- Shielding room

- Communications room

- Security room and laboratory

- MRI room

- Military office

Microwave anechoic chamber material is a pyramidal shaped, carbon loaded elastic polyurethane foam EM absorber material. This material may be applied for covering of anechoic chambers, and for construction of test equipment for antenna measurements. Absorber is made in form of panel.

Specification
Features and Benefies
Specifications
Market
Flexible, foam material
Fire retardant
Pyramid Electronic
No requirement for the substrate.
Blue or as request
Frequency Range : ≥ 1 GHz
Service Temperature °C : -50-80oC
Thickness Size Range : 20mm-1000mm
Commercial Telecom
Security and Defense
Electronic equipment test

item
value
Model Number
SA-Type
Type
EMC Filter
Place of Origin
China
Guangdong
Brand Name
Material
Natural Foam
Appearance
Pyramidal Shape
Product name
microwave absorbing material
Size
500*500mm
Color
Blue
Thickness
30-1000mm
Application
EMC Chamber, Anechoic Chamber, EMC Box, RF Cabinet etc.
Microwave Absorbing Material emc Pyramid Absorber For Anechoic Chamber rf shielding room
